Original Article
Clinical management of acute diabetic Charcot foot in Denmark
1. okt. 2016
12 min.
Faktaboks
Fakta
Charcot osteoarthropathy (Charcot foot) is characterised by spontaneous-fatigue bone fractures, progressive deformity and destruction of weightbearing bones and joints in the feet. The common denominator is peripheral neuropathy [1-3]. In the Western world, most cases currently occur in individuals with diabetes mellitus, with an incidence of about 0.25% [4, 5]. Charcot foot is a severe diabetes complication that is associated with increased mortality [6]. Patients who develop Charcot foot have often had suboptimal management of their diabetes and have a history of hyperglycaemia and several concomittant late diabetic complications [7, 8]. Treatment of acute Charcot foot consists primarily of long-term restricted walking and immobilisation with an off-loading cast [9-11], which might be detrimental to the patient’s overall health.
Employing a multidisciplinary team in the diagnosis, treatment and follow-up of patients with Charcot foot has been recommended in several guidelines to optimise disease management [8, 12-14].
To obtain an overview of the diagnosis and treatment practises of Charcot foot in a clinical setting in Denmark, we conducted a questionnaire study. Our objective was to describe the current awareness, knowledge and treatment practices of Charcot foot among doctors who handle diabetic foot disorders. We also wanted to assess the need for updating the treatment in line with the latest recommendations.
A. A typical presentation of acute Charcot foot with diffuse unilateral hyperaemia. B. A chronic Charcot foot. The bone structures have collapsed, leaving a so-called ”rocker bottom” foot.
METHODS
The survey was conducted using the free online software surveymonkey.com. The questionnaire was created for the study by author KKM based on international guidelines and recommendations [8, 10, 15]. It was sent out to healthcare professionals, primarily doctors, working with diabetic foot ulcers and Charcot feet in the public sector of the Danish healthcare system. A single copy was initially sent to each department of endocrinology and orthopaedic surgery in Denmark, as well as to three centralised wound treatment centres (Marselisborg, Odense and Bispebjerg). Author KKM selected the recipients by identifying the doctor responsible for coordinating treatment of diabetic foot ulcers at each department. We sent a second wave of invites including other doctors at the same department in case of no response or opt out.
The survey included a total of ten questions, with a combination of open-ended and closed-ended items. Eight questions contained multiple choice options, the items of which were not mutually exclusive. As it was possible for the same responder to provide several answers to some questions, the total number of replies to each question may exceed the total number of responders. In addition, it was possible for the responders to skip questions entirely. The total number of responders to each question is noted in the results section.
Trial registration: not relevant.
RESULTS
We succesfully contacted 52 different departments and received a total of 27 replies (including first and second wave invites), giving the study a 52% response rate.
No personal data were gathered about the responders apart from department and workplace. No responders were from the same department. Of the 27 responses, 17 responders confirmed that they were treating Charcot foot inhouse. Nine out of the remaining ten departments have in place a standard referral procedure to another department treating Charcot foot after diagnosis.
Diagnostic methods
Some items in this category have more than 17 responses (the number of responders treating Charcot foot). This reflects the fact that the departments who do not treat Charcot foot neverless diagnose the condition before referring the patient to another department for treatment.
A temperature difference of > 2 °C between the two feet is the most commonly used method of diagnosing Charcot foot, with 19 responders using it always or often. Regarding imaging diagnostics, X-ray is the most common tool, with 18 responders using it always or
often, while 15 responders use magnetic resonance imaging (MRI) for diagnosis always/often. Specialised blood tests like the receptor activator of nuclear factor kappa-B ligand, interleukins or tumour necrosis factor

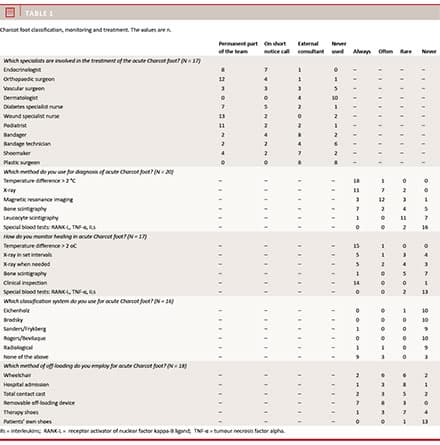

alpha are rarely/never used (n = 20, see Table 1).
Monitoring of healing in the acute Charcot foot
The most common measurements used for monitoring regression in the acute Charcot foot are measurement of the temperature differences between the feet (100%) and clinical inspection (100%). More complicated measures like bone scintigraphy and specialised blood tests are rarely/never used (92% and 100%, respectively)
(n = 17, see Table 1).
Use of established classification systems
The systems suggested for classification are Eichenholz, Brodsky, Sanders/Frykberg and Rogers/Bevilaque. None of the suggested formalised classification systems are used to any extent. Two responders confirmed using an unspecified radiological system for classification (n = 16, see Table 1).
Methods for off-loading
Most responders use removable off-loading devices (e.g. AirCast) for offloading (83%). Off-loading in a wheelchair is used always/often by half of the responders (50%), possibly during hospital admission. Some form of off-loading is used by all responders, i.e. patients are never discharged with their own footwear only (n = 18, see
Table 1).
Multidisciplinary team and specialist involvement

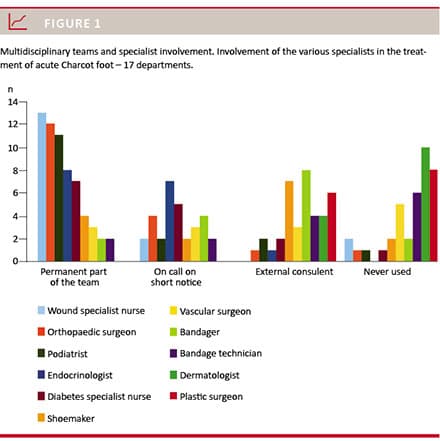

The most common permanent team members are orthopaedic surgeons (71%), wound specialist nurses (76%) and podiatrists (65%). Endocrinologists and diabetes specialist nurses are either permanent team members (47% and 41%, respectively) or on call on short notice (41% and 29%, respectively) (n = 17, see Figure 1).
Monitoring of development
The most common way of monitoring the switch from acute to chronic Charcot foot is by temperature change (100%), and 65% always or often use X-rays also. Scintigraphy or MRI is rarely or never used (81%) (n = 16).
Surgical procedures
53% of the responders declared that their department is involved in surgery on the Charcot foot. Most are involved in smaller procedures and basic amputations, while 18% did larger reconstructional surgery as well.

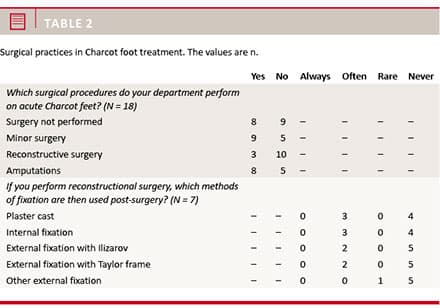

Both plaster casts, internal fixation and external fixation with Ilizarov or Taylor frame are used by the departments doing reconstructional surgery (n = 18, see Table 2).
DISCUSSION
The present survey was conducted in order to describe the current diagnosis, treatment and monitoring practices in Denmark of acute diabetic Charcot foot. As discussed by others [16], the actual treatment and diagnostic tools used for Charcot foot may vary despite the rather uniform guidelines in the litterature. This is further underlined by the data presented here, which show different approaches to the treatment and substantial variation in the involvement of multidisciplinary teams.
Specific blood tests for Charcot foot activity are still mainly in the experimental stage. The questionnaire focused on markers of inflammation and bone metabolism. While a recent study [17] investigated some of these biomarkers in diabetes patients with Charcot foot, the exact relationship between them and disease activity currently remains unclear. More common blood tests, such as C-reactive protein and leukocyte count to diagnose possible osteomyelitis were not encompassed by this questionnaire.
We have not asked about the use of bisphosphonates or other anti-osteoporotic medications. The use of these are not recommended for the treatment of acute Charcot foot in Denmark, as there is not sufficient evidence in support of their beneficial effect, if any [18, 19].
Surgery on Charcot foot is performed to control deformities and prevent ulceration, primarily when the foot is in remission, i.e. has become a “chronic Charcot foot”. Many surgical procedures have been used, all with a low level of efficacy [20]. A removable cast was the preferred method of off-loading, and the high rate of use of off-loading and immobilisation is in line with several recommendations [8, 15, 18, 21].
Our survey provides an overview of the management of Charcot foot in Denmark. However, the survey had a low response rate and may therefore not represent treatment practices all over the country. In addition, the responses were unevenly distributed geographically as most responders (18/27) work at hospitals near the two largest cities in Denmark (Copenhagen and Aarhus). This may be so because these cities have the highest concentration of departments working with Charcot foot. As a relatively rare disorder, the treatment and monitoring of Charcot foot is generally centralised in a few major centres. On the other hand, it is possible that the non-responders on average have less focus on this particular area and may overlook the diagnosis, and therefore did not reply to the questionnaire. By only getting answers from those of the invited responders who have the strongest focus on Charcot foot, data will be skewed “positively”.
However, we can see that the departments at or near the three major centres for diabetic foot ulcer treatment in Denmark (Copenhagen, Aarhus and Odense) generall have a higher response rate, and that the departments in nearby hospitals, in the periphery around each centre, refer their patients to the “local” centre. On the other hand, several departments placed geographically further away from the diabetic wound treatment centres (in another region) tend to treat their patients themselves.
CONCLUSION
Our survey of diagnosis and treatment practices of acute diabetic Charcot foot at diabetes foot clinics in Denmark shows that this condition is mainly diagnosed by measurement of temperature differences between the feet and by clinical assessment. These measures are used to monitor the effect of treatment as well. No formal classification systems are used. Patients are treated primarily by off-loading with removable devices, and the treatment is performed by teams consisting of orthopaedic surgeons, wound specialised nurses, podiatrists, and with endocrinologists and diabetes specialised nurses as well. Only two centres reported the use of a classification system. In clinical practice, the classification systems of Charcot foot often only give minimal support in diagnosis and treatment. The rare use of classification even in specialised centres probably also reflects that no local or central databases are used. The Danish Health Authority encourages the use of databases in the treatment of the diabetic foot, and in the coming years this is likely to bring a more frequent use of classification systems.
No official treatment guidelines for acute Charcot foot exist in Denmark. Despite this, the responders seem to follow international recommendations and guidelines on the management of acute diabetic Charcot foot. While this is better than could have be suspected, there is still room for improvement. This may be achieved by implementing a set of national guidelines based on the international recommendations.
Correspondence: Rasmus Bo Jansen. E-mail: rasmus.bo.jansen@regionh.dk
Accepted: 6 July 2016
Conflicts of interest:Disclosure forms provided by the authors are available with the full text of this article at www.danmedj.dk
#PLACEHOLDER4
Referencer
REFERENCES
Rogers LC, Frykberg RG. The charcot foot. Med Clin North Am 2013;97:847-56.
Lee L, Blume PA, Sumpio B. Charcot joint disease in diabetes mellitus. Ann Vasc Surg 2003;17:571-80.
Boulton AJM. Diabetic neuropathy and foot complications. Handb Clin Neurol 2014;126:97-107.
Fabrin J, Larsen K, Holstein PE. Long-term follow-up in diabetic Charcot feet with spontaneous onset. Diab Care 2000;23:796-800.
Rajbhandari SM, Jenkins RC, Davies C et al. Charcot neuroarthropathy in diabetes mellitus. Diabetologia 2002;45:1085-96.
van Baal J, Hubbard R, Game F et al. Mortality associated with acute Charcot foot and neuropathic foot ulceration. Diab Care 2010;33:1086-9.
Sommer TC, Lee TH. Charcot foot: the diagnostic dilemma. Am Fam Phys 2001;64:1591-8.
Frykberg RG, Zgonis T, Armstrong DG et al. Diabetic foot disorders. A clinical practice guideline (2006 revision). J Foot Ankle Surg 2006;45(suppl 5):S1-S66.
Ramanujam CL, Facaros Z. An overview of conservative treatment options for diabetic Charcot foot neuroarthropathy. Diabet Foot Ankle 2011;2:
10.3402.Milne TE, Rogers JR, Kinnear EM et al. Developing an evidence-based clinical pathway for the assessment, diagnosis and management of acute Charcot neuroarthropathy: a systematic review. J Foot Ankle Res 2013;6:
30.Christensen TM, Gade-Rasmussen B, Pedersen LW et al. Duration of off-loading and recurrence rate in Charcot osteo-arthropathy treated with less restrictive regimen with removable walker. J Diabetes Complications 2012;
26:430-4.Edmonds ME, Blundell MP, Morris ME et al. Improved survival of the diabetic foot: the role of a specialized foot clinic. Q J Med 1986;60:763-71.
Apelqvist J, Larsson J. What is the most effective way to reduce incidence of amputation in the diabetic foot? Diabetes Metab Res Rev 2000;16(suppl 1):S75-S83.
Gottrup F. A specialized wound-healing center concept: importance of a multidisciplinary department structure and surgical treatment facilities in the treatment of chronic wounds. Am J Surg 2004;187:38S-43S.
Rogers LC, Frykberg RG, Armstrong DG et al. The Charcot foot in diabetes. J Am Podiatr Med Assoc 2011;101:437-46.
Pinzur MS, Shields N, Trepman E et al. Current practice patterns in the treatment of Charcot foot. Foot Ankle Int 2000;21:916-20.
Petrova NL, Dew TK, Musto RL et al. Inflammatory and bone turnover markers in a cross-sectional and prospective study of acute Charcot osteoarthropathy. Diabet Med J Br Diabet Assoc 2015;32:267-73.
Game FL, Catlow R, Jones GR et al. Audit of acute Charcot’s disease in the UK: the CDUK study. Diabetologia 2012;55:32-5.
Pakarinen T-K, Laine H-J, Mäenpää H et al. Effect of immobilization, off-loading and zoledronic acid on bone mineral density in patients with acute Charcot neuroarthropathy: a prospective randomized trial. Foot Ankle Surg 2013;19:121-4.
Lowery NJ, Woods JB, Armstrong DG et al. Surgical management of Charcot neuroarthropathy of the foot and ankle: a systematic review. Foot Ankle Int 2012;33:113-21.
Sponer P, Kucera T, Brtková J et al. The management of Charcot midfoot deformities in diabetic patients. Acta Medica (Hradec Kralove) 2013;56:
3-8.
