Reliability of ultrasound measurement of glenohumeral instability

The glenohumeral (GH) joint is highly mobile and prone to dislocations, affecting nearly 2% of the general population, with many developing recurrent instability [1, 2]. Clinical laxity tests may reveal instability, but are generally examiner-dependent [3]. Objective measurement provides valuable biomechanical insights that can enhance diagnostics, guide rehabilitation and evaluate treatment outcomes. While static imaging modalities like conventional magnetic resonance imaging (MRI) are excellent for assessing soft tissue structures, they do not capture real-time joint movement, which is crucial for understanding functional instability. Dynamic imaging methods like fluoroscopy, advanced dynamic computed tomography (CT) or perioperative arthroscopy offer detailed assessment, but are limited by radiation exposure or invasiveness [4, 5]. Ultrasound (US) offers an accessible, cost-effective and non-invasive alternative for dynamic GH joint assessment.

Studies suggest increased GH translation in unstable shoulders, but the correlation between translation changes, clinical instability and patient outcomes remains unclear [6]. Research employing radiography, US and motion capture has demonstrated varied findings. For example, biplanar X-ray showed normalised anterior-posterior (AP) translation after open anterior capsule repair, whereas motion capture analysis of open Latarjet procedures found no significant stabilisation [7, 8].

US measures of GH translation have shown promising validity and reliability in healthy subjects, with one study assessing intra- and interrater reliability in anaesthetised patients with anterior shoulder instability [9-14]. However, its reliability in unanaesthetised patients in a clinical context remains unexplored. This study aimed to fill that gap by simulating a clinical setting where multiple physicians with varying US experience assessed patients. We investigated the reliability of AP GH translation measurements in patients with anterior shoulder instability performed by raters with limited US training. Specifically, we investigated 1) intrarater reliability from repeated measurements by a single rater and 2) interrater reliability between two raters, hypothesising good reliability (intraclass correlation coefficient (ICC) > 0.75).

Methods

Study design and trial period

The study followed the Guidelines for Reporting Reliability and Agreement Studies. It included participants from a prospective cohort study of patients with anterior shoulder instability undergoing arthroscopic Bankart repair (from June 2022 to December 2023) [15]. The study was approved by the Danish Capital Region Ethics Committee (H-21027799) and the Knowledge Center for Data Reviews (P-2021-842).

Training of raters

A training phase was conducted to test the setup, refine the protocol and train the raters. Two medical doctors with minimal prior US experience assessed all participants. Rater A had three years of clinical experience, and Rater B had one year. Both received identical training supervised by a physiotherapist with over ten years of musculoskeletal US experience. Additionally, they practised on each other; five asymptomatic individuals and five patients with shoulder instability.

Study execution

A standardised AP GH translation examination protocol was developed (section 2.4) based on prior protocols and pilot trials [10, 16]. Rater A conducted same-day test-retests for intrarater reliability, whereas Rater B performed additional same-day examinations for interrater reliability. All assessments were performed consecutively, but patients were repositioned, and the machine settings were reset between assessments. Each session included one saved image of relevant landmarks (Table 1) (Supplementary Figures 1-2).

Blinding

Intrarater

To prevent expectation bias, both image series were captured and stored before measurement. Blinding to prior results was not possible.

Interrater

The examination order was randomised. Each rater independently measured translation on their own images in separate rooms, without discussion.

Ultrasound examination protocol

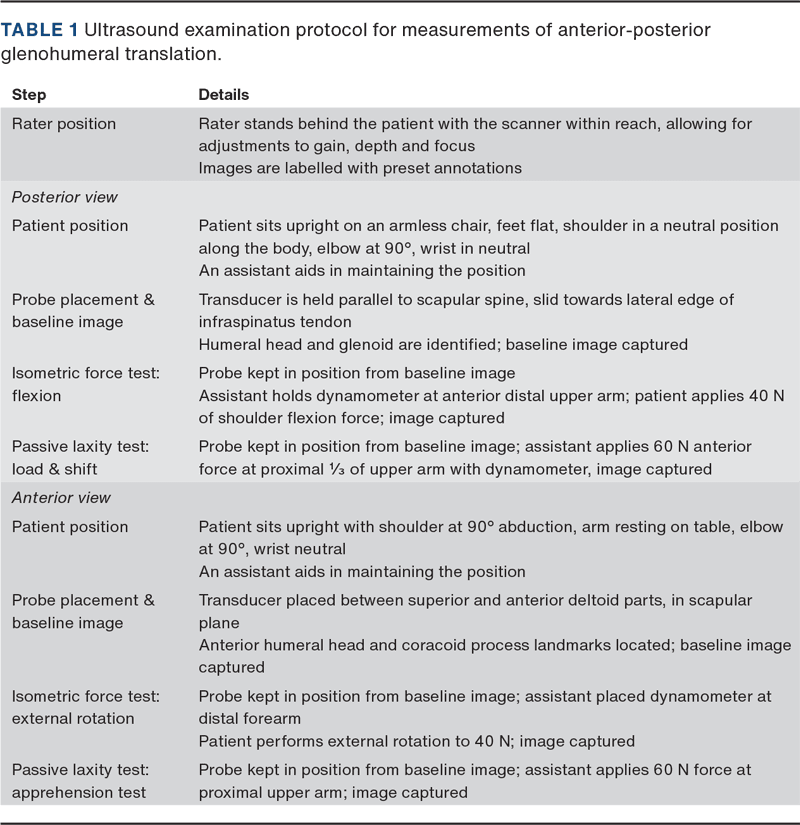

The AP translation was measured using two probe positions (Table 1) on a Hitachi Arrieta V70 scanner (v00-5.3.0) with a 10 MHz linear probe, mechanical index 0.8 and soft tissue thermal index < 0.4. A custom-preset set was used: depth 30 mm, focus 25 mm, gain (B-mode) 70 dB. The mean of two measurements was analysed. Posterior measurements followed Rathi et al., and anterior measurements were adapted from Takeuchi et al. [10, 16]. The difference between measurements of distances at rest and under force represented the AP GH translation (Table 1).

Outcomes

The primary outcome was ICC (2,1). Additional outcomes included the standard error of measurement (SEM), minimal detectable change (MDC) and Bland-Altman plots.

Other variables

The following patient demographics were recorded: age, gender, height and weight, limb dominance and affected side.

Study population and eligibility criteria

The eligibility criteria included age 18-40 years, unilateral anterior shoulder instability with radiographically confirmed or reduced dislocation, scheduled arthroscopic Bankart repair, protocol adherence and Danish language proficiency. Written informed consent was obtained. The exclusion criteria were other shoulder pathology, pregnancy or severe illness (American Society of Anesthesiologists (ASA) score ≥ 3).

Recruitment

Patients were recruited from five sports orthopaedic clinics (three public university hospitals; two private hospitals). Eligible patients were identified in outpatient clinics, provided with written study information, and asked to consent to being contacted. Final inclusion and all study activities occurred at the Department of Orthopaedic Surgery, Copenhagen University Hospital – Hvidovre Hospital.

Patient involvement

Pilot trials involving patients with anterior shoulder instability helped shape the design of the examination protocol and outcomes.

Statistical analysis

Sample size

This study, which formed part of a larger cohort study, did not have a pre-hoc sample size estimation. Instead, 23 patients were consecutively included over 18 months. A post-hoc power calculation (R v4.3.0, ICC.Sample.Size package) showed a power of 0.63 to detect an ICC of 0.75, with a minimal ICC of 0.5 and alpha set at 0.05.

Reliability analyses

Reliability was assessed using ICC(2,1) (primary outcome), SEM, MDC, and Bland-Altman plots. The ICC(2,1) model used a two-way random effect, absolute agreement and two measurements (k = 2) [17]. ICC values were classified as suggested by Koo et al.: < 0.5 (poor), 0.5-0.74 (moderate), 0.75-0.89 (good), > 0.90 (excellent) [17]. Descriptive statistics included mean (± standard deviation (SD)), median (range) and percentages (95% confidence interval). All analyses and figures were created in R (v4.3.0).

Trial registration: ClinicalTrials.gov (ID: NCT05250388).

Results

Patients

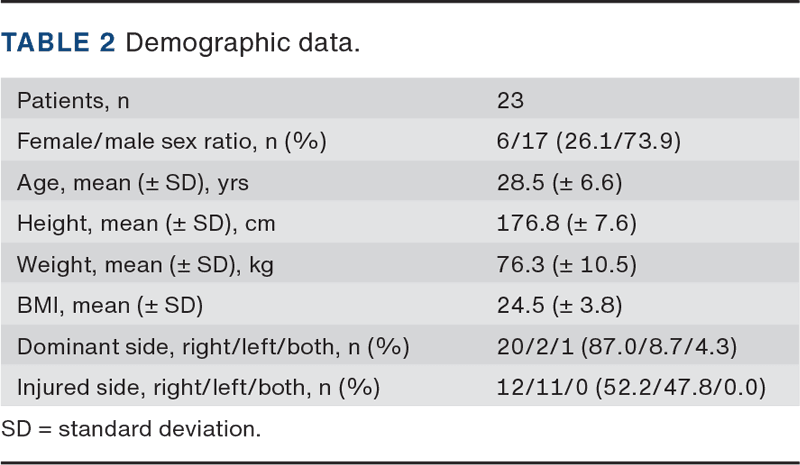

Thirty-one patients were recruited, with two excluded due to re-diagnosis of posterior instability and six withdrawing their consent. Thus, 23 patients participated. Patient data are shown in Table 2. No adverse events occurred during or after the experiments.

Intrarater reliability

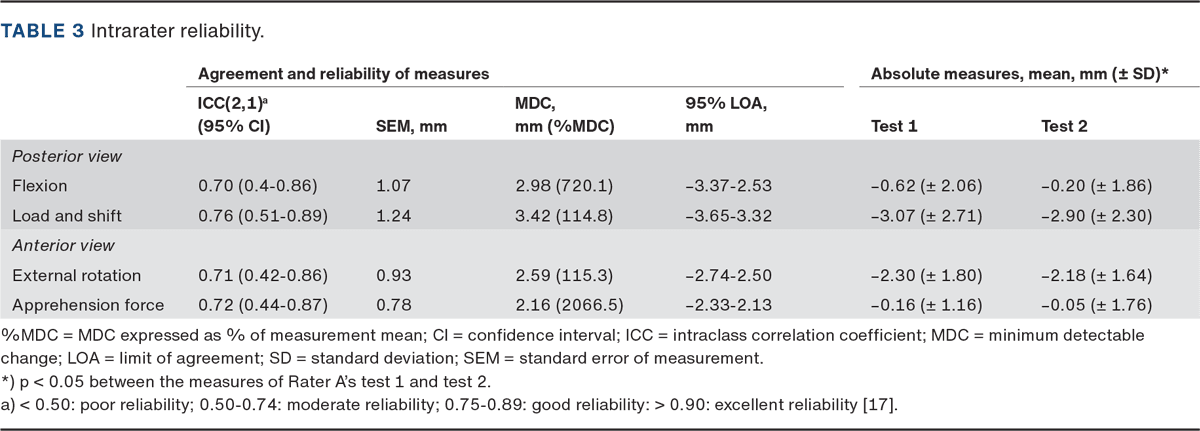

Results are shown in Table 3. The Bland-Altman plots for intrarater translation measurements showed no systematic bias, with mean differences below 0.42 mm. However, the limits of agreement were wide, ranging from –3.65 mm to 3.32 mm (Supplementary figure 3), limiting measurement precision.

Interrater reliability

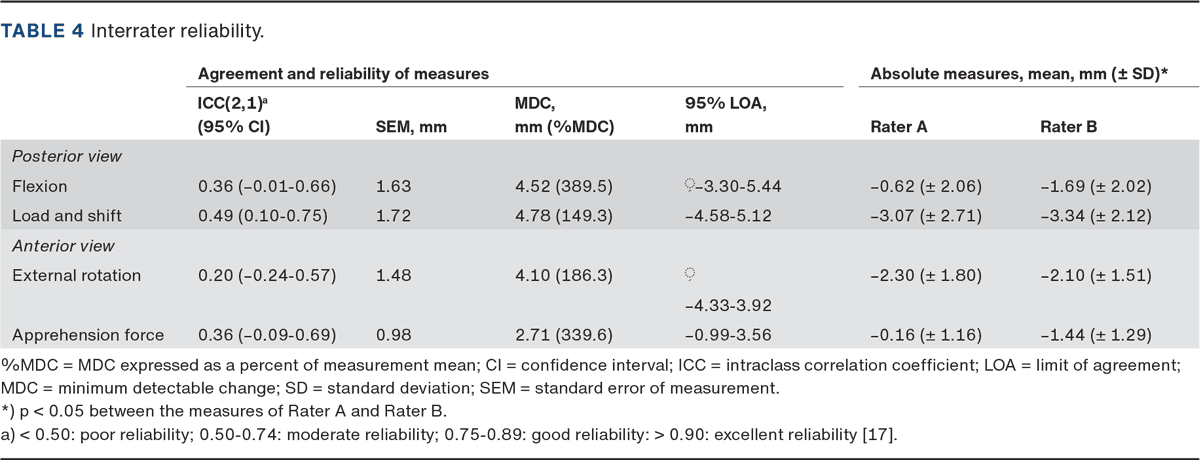

Results are shown in Table 4. The Bland-Altman plots of the interrater translation measurements revealed no systematic bias, with mean differences below 1.3 mm. Translation measured in the Apprehension Force test was positively skewed, with rater B recording higher values. The limits of agreement ranged from –4.58 mm to 5.44 mm (Supplementary Figure 3), reducing measurement precision.

Discussion

This study found moderate to good intrarater reliability and poor interrater reliability of US measurements of AP GH translations in patients with anterior shoulder instability, as assessed from ICC. The MDC ranged from 2.71 to 4.78 mm for different raters and from 2.16 to 3.42 mm for the same rater, with a percentual MDC (%MDC) of 114.8-2,066.5%. The simulated “Load and Shift” test, assessing the joint from a posterior view, was the most reliable overall, showing the highest ICC values and the lowest %MDC. While there are no universally defined thresholds for acceptable %MDC in GH translation, values above 100% suggest that the measurement error exceeded the measurement itself, making it difficult to distinguish actual changes from measurement variability. Additionally, our lowest observed %MDC of 114.8% raises concerns regarding the clinical applicability of the current protocol.

Overall, the results indicate that the proposed US protocol lacks reliability when used by operators with limited US experience in a clinical setting. For future research, a reliability study involving more experienced clinicians is recommended.

Our results differ from previous studies that reported good to excellent intrarater reliability (ICC: 0.81-0.998) and poor to excellent interrater reliability (ICC: 0.31-0.98), likely due to differences in patient populations, such as healthy subjects, anaesthetised patients or cadavers [10, 14, 16].

The lower ICC values in this study were expected, as patient variability generally exceeds that of healthy subjects. Both raters in this study had limited US experience. In contrast, both studies mentioned above involved radiologists or orthopaedic surgeons with extensive US experience, which could explain the higher ICC [14, 16]. Additionally, the study by Inoue et al. involved only one rater acquiring the US images, which may have reduced variability in image acquisition technique. Furthermore, novice US raters may exhibit greater variability, leading to lower ICC values.

Even slight variations in probe positioning and angulation could influence measurements. This may have led to inaccuracies in capturing the true anterior or posterior translation, as subtle probe misalignment may cause the US beam to assess a slightly oblique or off-axis plane rather than a strictly AP direction.

ICC(2,1) was used to assess interrater reliability, assuming that raters were randomly selected from a larger population and evaluating the reliability of a single measurement per rater. Whereas ICC(2,k) could provide higher reliability estimates by averaging multiple ratings, our design involved one assessment per rater (although based on the average of two measurements), making ICC(2,1) the most appropriate choice [18]. For intrarater reliability, a fixed-effects model like ICC(3,k) with k = 2 could have been used. This would potentially have yielded higher estimates by eliminating interrater variability [17]. Recognising the limitations of statistical methods, we applied multiple statistical approaches (ICC, SEM, MDC and Bland-Altman plots) to ensure consistency and minimise interpretation uncertainties [19]. In our case, the results remained consistent across methods, reinforcing the robustness of our findings.

Rater A registered mean anterior translations ranging from 0.05 mm (SD: ± 1.76) to 3.07 mm (SD: ± 2.71), whereas Rater B measured 1.44 mm (SD: ± 1.29) to 3.34 mm (SD: ± 2.12), with the highest values observed during the “Load and Shift” test. These values were lower than those reported by Inoue et al. at 0° of abduction in anaesthetised patients (5.29 mm anterior translation) [14]. Krarup et al. reported a mean anterior translation of 4.9 mm in an adducted arm under a 90 N force, which is more comparable to our findings using a 60 N force [12]. Krarup et al. further found a mean anterior translation of 2.1 mm in the healthy shoulders. Variability in study protocols, including force, positioning and patient conditions, complicates direct comparisons between studies. As a result, no established threshold for abnormal AP GH translation has been defined [6].

Capturing all image series before measurements limited expectation bias, and Raters A and B were blinded to each other’s results. However, the rater was not blinded to their own results for intrarater reliability. The limited sample size of the study affects statistical power and may lead to type II error, and a larger sample would have made the results more robust.

A major strength of this study was its resemblance to clinical practice. The study protocol was simple and potentially transferable to the clinical setting, e.g., at the outpatient clinic, though requiring an assistant could limit its clinical use.

Manual clinical tests remain essential for diagnosing shoulder instability, but examiner experience often limits their reliability. Dynamic imaging methods offer real-time objective assessments of GH translation and may enhance diagnostic accuracy and treatment evaluation. We acknowledge that no single imaging modality currently provides an optimal solution for tracking GH joint motion [6]. While stress-loaded cross-sectional imaging, such as dynamic MRI, offers the advantage of non-irradiating 3D visualisation, it is limited by scan time, availability and challenges in capturing high-speed movements. Although recent advancements in MRI protocols have shown potential, their reliability and feasibility require further validation [6]. Radiostereometric analysis (RSA) provides accurate 3D kinematic measurements, but is constrained by radiation exposure and requires specialised equipment [20]. US is widely available and non-invasive, allowing for real-time dynamic assessment without radiation. While US lacks the depth resolution of MRI and the precision of RSA, its ability to provide functional insights during movement in a clinical setting makes it a valuable tool for assessing GH translations. However, its clinical applicability for GH translation has yet to be fully established, particularly regarding validity and reproducibility across different examiners and patient populations. Each method has inherent advantages and limitations, and the choice of imaging technique should be guided by the specific clinical or research question at hand.

Conclusions

Intrarater reliability was moderate to good, whereas interrater reliability was poor among raters with limited US experience for measuring AP GH translation in patients with anterior shoulder instability. The simulated “Load and Shift” test demonstrated the highest reliability. However, the large variability of the measurements and high %MDC values cast doubt on the clinical applicability of this US protocol when performed by inexperienced sonographers.
