Traumatic bicycle handlebar hernia in children: a systematic review

Magnus Strøh Schmidt1, Jacob Rosenberg2 & Mette Astrup Tolver2

2. jan. 2018
14 min.

Faktaboks

Fakta

Abdominal trauma among children accounts for approximately 5% of all admissions to paediatric emergency departments [1]. These admissions include bicycle accidents where a fall can cause a collision between the abdomen and the bike stem, or, as in 70% of the cases, the end of the handlebar [2]. Besides the risk of lesions to internal abdominal organs, a traumatic abdominal wall hernia can be formed. Due to a higher elasticity of the skin compared with abdominal fascia and muscle, collision of a bicycle handlebar with the abdomen can cause rupture of the fascia without causing a skin lesion, thus producing a traumatic hernia. This is often referred to as “handlebar hernia”. It is a rare injury that may result in prolonged pain and risk of bowel strangulation if the condition is not diagnosed and treated timely.

The aim of this review was to evaluate the diagnostic modalities and treatment of bicycle handlebar hernia based on reported evidence. We provide a systematic review of the existing literature on bicycle handlebar injuries in children below 17 years of age.

METHODS

The reports were reviewed as recommended by the Preferred Reporting Items for Systematic Reviews and

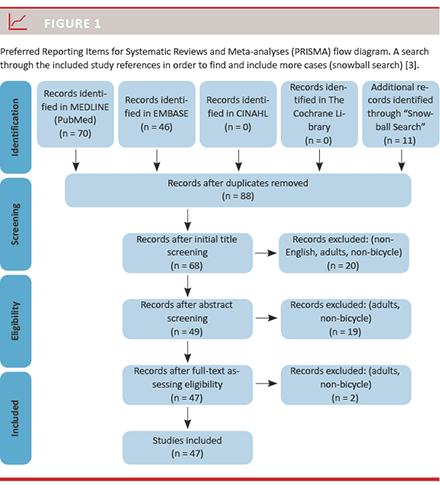

Meta-analyses (PRISMA) guideline [3]. A systematic literature search was conducted in PubMed, Embase, CINAHL and the Cochrane Library Database in September 2017. The search term “Handlebar Hernia” was used. In PubMed, no search filters were applied to ensure that no studies were overlooked. A similar search term and method was used in Embase, CINAHL and the Cochrane Library Database. All studies were screened by title and abstract. Duplicates, irrelevant topics and non-English articles were excluded. The remaining studies were read in full, including the references to identify additional relevant studies (Figure 1).

All studies presenting cases of traumatic abdominal wall hernia caused by bicycle handlebar in children below 17 years of age were included, regardless of study design. Data on study information (authors and year of publication) and study results (gender, age, diagnostic modality, timing of surgery, location of hernia, associated injuries, management, and recurrence of hernia) were extracted from the available studies [1, 2, 4-46]. The results of the included studies were presented to provide an overview of the reported cases followed by a discussion of the reported diagnostic modalities and treatment options for bicycle handlebar hernia in children.

RESULTS

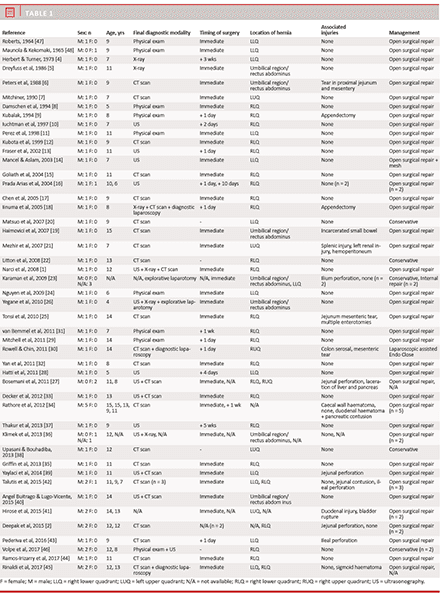

The systematic literature search identified 47 reports including a total of 62 cases of handlebar hernia with the first reported case dating back to 1964 (Table 1).

The median age was 11 years (range: 4-15 years) with a male-to-female ratio of approximately 9:1. The suspicion of traumatic abdominal wall hernia often arises during the clinical-anamnestic exam performed in patients having suffered a blunt abdominal trauma [34]. The typical clinical presentation of traumatic abdominal wall hernia may include a hyperaemic area, bruising and ecchymosis of the abdominal wall with a fluctuating bulge under the skin.

A characteristic ring-shaped “handlebar sign” is

often present on the skin and may be used as a prognostic sign of internal injuries. One study found that 45% of the patients with life-threatening intra-abdominal injuries had the “handlebar sign” on the abdominal wall [23]. The present review found that 100% of the hernias in the right upper quadrant and 40% in the left upper quadrant had associated intra-abdominal injuries, whereas only 21% in the left lower quadrant and 23% in the right lower quadrant had intra-abdominal injuries (Figure 2).

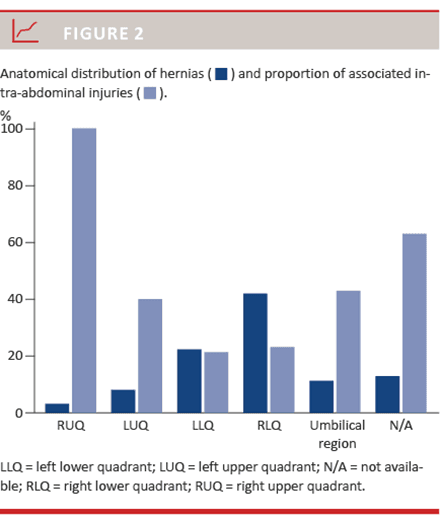

Overall, associated intra-abdominal injuries were reported in 26% of the cases. CT, being used as a final diagnostic modality in 52% of the cases, was the most common diagnostic modality. In 15% of the cases, a diagnosis was given based solely on the physical examination. Ultrasonography was used in the diagnostic process in 26% of the cases, but was used as the final diagnostic modality only in 13% of the cases.

Open surgical repair of the handlebar hernia was the treatment of choice in 85% of the cases. Laparoscopic suturing was used in one study [30]. In two cases, hernia was found during the initial explorative laparotomy for intestinal perforation and subsequently managed by internal repair without a separate skin incision [23]. Mesh was used only in one of the reported cases [14]. Almost two thirds (66%) of the patients who were treated with surgical repair had surgery immediately

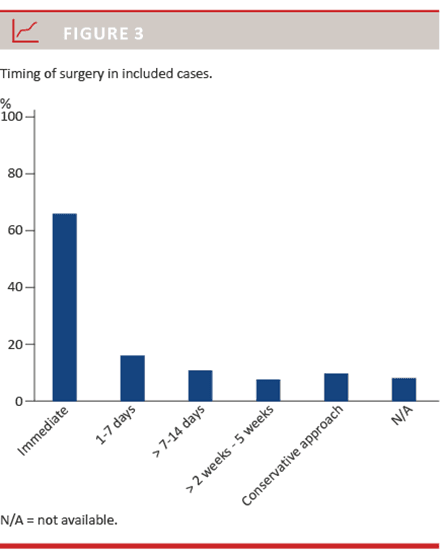

after presentation (Figure 3).

There was no reported recurrence of hernia in any of the cases.

A total of six cases of traumatic abdominal wall hernia were treated conservatively (non-surgically) [20, 22, 23, 38, 46]. In all six cases, only local tenderness or pain was present on the site where the hernia protruded. The location of hernia was heterogeneously distributed in the left lower quadrant, the right lower quadrant and the left upper quadrant. In order to achieve the diagnosis, a CT was reported to have been used in five out of the six cases. Sizes of the fascia defects were described in three cases and measured 1-4 cm. In all six cases, no concurrent intra-abdominal injuries were present on investigation. An abdominal compression corset was used in two of the cases. In three cases, the defects in the

abdominal wall were resolved completely within four months [20, 22, 23]. One case showed a decrease of the fascia defect from 2 cm to 5 mm within six months [38]. The last two cases diminished in size from 15 mm to 3 mm in 12 months and from 10 mm to 3 mm in two months [46].

DISCUSSION

A paediatric patient with a bicycle handlebar hernia is typically a school-aged boy. Occurrence of intra-abdominal injuries increased significantly with handlebar hernia located in the upper half of the abdomen. CT is often used as the final diagnostic modality, and open surgical repair of the handlebar hernia with layered closure without a mesh was the preferred approach, although successful laparoscopic sutured repair has also been described.

CT is the gold standard as a diagnostic imaging

modality in evaluation of abdominal injuries after high-energy blunt trauma in haemodynamically stable children [49]. In the haemodynamically unstable child, an immediate explorative laparotomy is required [49]. Blunt trauma with a bicycle handlebar can be a high-

energy or a low-energy trauma and is often an isolated trauma. Thus, in cases with an overall unaffected child and a low-energy trauma in the lower quadrants with a bicycle handlebar, ultrasonography can be used as an alternative. Attention is necessary during investigation as sensitivity and specificity obviously vary between the different modalities used for diagnosing a traumatic abdominal wall hernia. Ultrasonography is of great value but largely operator-dependent. In one study, traumatic abdominal wall hernia was initially misdiagnosed as an abdominal wall haematoma, possibly due to the lack of ability of the ultrasonography to distinguish between haematoma and a bowel loop as they both may appear hyperechoic [50]. In one case, a hernia was missed during initial physical and ultrasonography examination during the first 48 hours [16]. Ultrasonography may be used to diagnose intra-abdominal injuries by the occurrence of free fluid in the peritoneal cavity. Minimal pelvic free fluid may be physiological in both boys and girls and is present in up to 12% of asymptomatic children without intra-abdominal injuries [51]. In one study, 3.5% of patients with small amounts of pelvic peritoneal fluid had intra-abdominal injuries, whereas 92.3% of patients with free fluid outside the pelvis had organ injury [52].

It is believed that abdominal wall defects can be overlooked during the initial radiographic investigation due to pain and muscle spasms [42]. A plausible reason for delayed initial diagnosing may be delayed herniation with rupture of the abdominal wall due to haematoma or wound infection [8, 28].

Early diagnosing and treatment may hypothetically be associated with less morbidity due to prevention of incarceration and strangulation [31]. Surgery with sutured closure with absorbable suture of all layers after evacuation of subcutaneous haematoma and removal of non-viable tissue was the preferred method in the management of these injuries. Laparoscopically sutured repair may also be an option, especially if diagnostic laparoscopy is performed anyway. Non-surgical treatment was used in four cases, apparently with success. However, in one case only clinical follow-up was performed.

A limitation of this review was that a majority of the included studies were case reports with a short follow-up period, making the risk of recurrence of hernia difficult to assess. Furthermore, there was no consistency in the variables presented.

CONCLUSIONS

Traumatic abdominal wall hernia caused by a bicycle handlebar in children is a rare type of injury. Traumatic abdominal wall hernia can be visualized by ultrasonography, but CT is often used as the final diagnostic modality because of the risk of associated intra-abdominal injuries. Surgical repair of the handlebar hernia with open or laparoscopic suturing can be used. Non-surgical management has been described in selected cases, but the available data do not support a general recommendation for non-surgical management.

Correspondence: Magnus Strøh Schmidt.

E-mail: magnussschmidt@gmail.com

Accepted: 13 November 2017

Conflicts of interest: none. Disclosure forms provided by the authors are available with the full text of this article at www.danmedj.dk
