Video-assisted thoracoscopic plication in symptomatic adults with paralytic hemidiaphragm

A small group of patients with dyspnoea demonstrate abnormal elevation of one hemidiaphragm on chest radiography. This may be due to simple relaxation of the muscle fibres, but more frequently results from diaphragmatic paralysis, which may arise from phrenic nerve injury or tumour compression. However, in many cases, no explanation is found [1-4].

For unknown reasons, diaphragmatic paralysis occurs more frequently in males and on the left side [5-7]. Diagnosis rests on physiological evaluation of diaphragmatic movement during fluoroscopy while breathing heavily (also named “sniff test”), where one hemidiaphragm does not move or moves paradoxically [7, 8]. Such patients typically present with progressive dyspnoea, hypoventilation, atelectasis and occasionally hypoxia [1, 4], which may severely impact their quality of life [2]. Initial management is conservative, including weight loss in obese patients to reduce their intra-abdominal pressure [4, 8]. In selected patients, diaphragmatic plication (DP) may be an option when conservative management fails [3, 8]. The procedure aims to flatten the elevated hemidiaphragm, reducing lung compression [4]. An open thoracotomy was historically preferred but caused long-lasting pain and morbidity. In recent decades, minimally invasive techniques have been introduced, including video-assisted thoracoscopic surgery (VATS), robotic-assisted thoracoscopic surgery and laparoscopic techniques [4, 8]. Studies have demonstrated improved lung function [2, 9], symptom relief and enhanced quality of life after DP, regardless of the surgical approach [2, 10, 11]. The benefits of minimally invasive techniques include reduced pain, shorter hospital stay and a faster recovery [9, 12].

Since 2021, we have modified the VATS technique using CO₂ insufflation and pledged stitches. This report evaluates improvements in lung function and patient satisfaction.

Methods

We retrieved electronic patient records from all patients who underwent elective VATS DP in 2021-2023 due to unilateral diaphragmatic paralysis confirmed by a positive sniff test (paradoxical movement) and who were unresponsive to conservative treatment. We compared pulmonary function tests before and after surgery and collected details about satisfaction rates from follow-up visits by phone, email or in person by the operating surgeon.

Surgical technique

Minimally invasive DP is performed at all thoracic centres in Denmark, though the approach may vary based on clinical and surgeon-related factors. All procedures were performed by one consultant with over 30 years of VATS experience, using a three-port technique under general anaesthesia with contralateral single-lung ventilation. CO₂ insufflation caused the elevated hemidiaphragm to move caudally, allowing for better overview and placement of two Prolene-1 sutures: one anchored laterally and sutured medially with felt-pledges to minimise the risk of rupture. The second was tied to the first, medially to reinforce the flattening and correct minor eventrations. We routinely applied a chest drain until the next day and used intercostal nerve blocks (bupivacaine 0.25%) in addition to oral analgesics.

Trial registration: retrospective follow-up.

Results

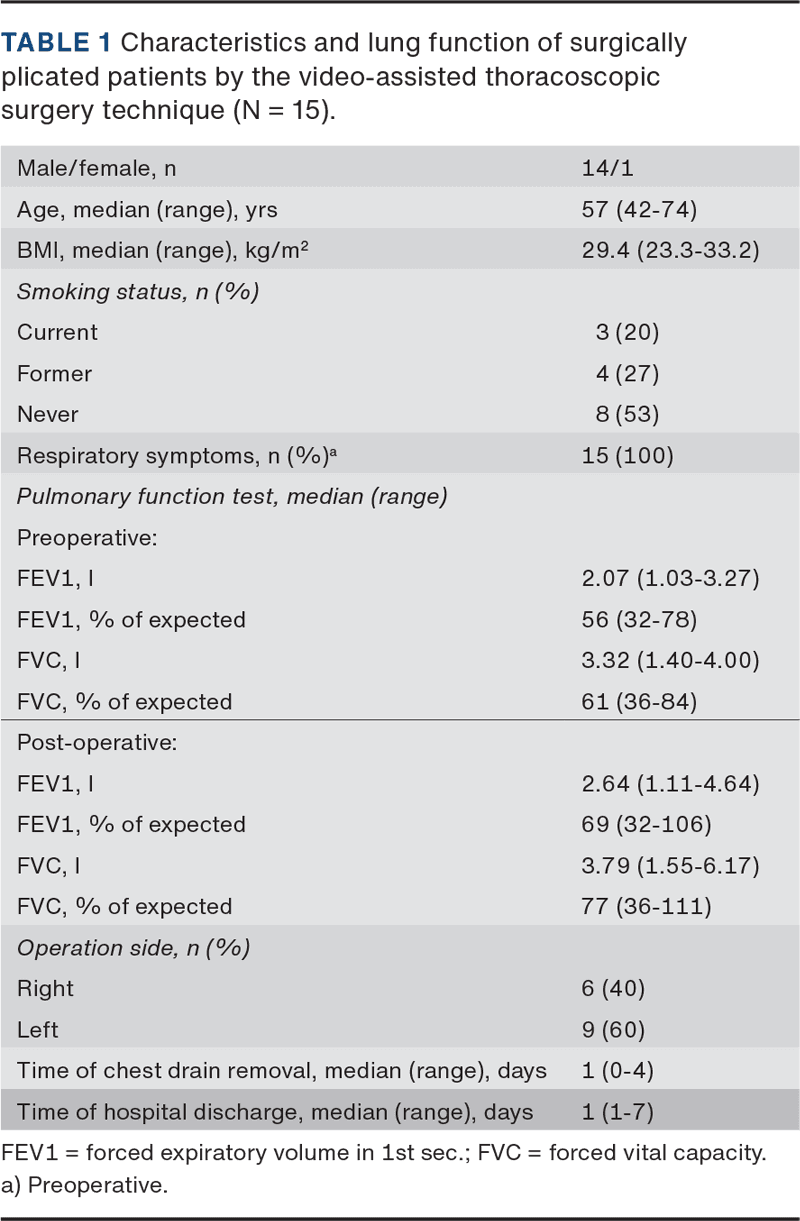

Fifteen patients underwent surgery. Table 1 shows baseline and surgical characteristics. The median duration of surgery was 81 minutes (range: 61-133). The median hospital stay was one day (range: 1-7 days). Three patients had prolonged stays: two due to air leakage and one because of a splenic haematoma.

All patients underwent post-operative pulmonary function tests after a median of 119 days (range: 66-165 days). Mean forced vital capacity (FVC) increased from 63.1% ± 13.7% (mean ± standard deviation) preoperatively to 75.1% ± 18.6% post-operatively (p < 0.01). Mean forced expiratory volume in the first sec. (FEV1) increased from 56.1% ± 12.8% to 69.1% ± 17.3% (p < 0.01).

Nine of 12 patients with available data reported symptomatic improvement post-operatively (p = 0.02). Two patients reported no changes. One patient reported an initial improvement but experienced recurrence of symptoms 1.5 years after surgery, although his pulmonary function test remained better than at baseline.

Discussion

This small case series demonstrates significant improvement in pulmonary function (FVC and FEV1) and respiratory symptoms following VATS-based DP (Figure 1). This is consistent with the existing literature [3, 5, 9, 11, 13], which mainly includes case reports or small case series. Freeman et al. compared VATS, open surgery and conservative treatment in a cohort study, reporting improved dyspnoea and pulmonary function at a six-month follow-up [6], with sustained increases in FVC and FEV1 of 19% and 23%, respectively, after 57 months [11].

We used VATS only but modified the previously described methods by applying CO₂ insufflation to improve visualisation of the elevated hemidiaphragm, as we believe that this technique may improve suture placement. Additionally, we used pledged felt reinforcement of every stitch to reduce the risk of diaphragmatic tears, rupture and recurrence.

Most patients were discharged on the first post-operative day; three had longer stays due to complications. Two had self-limiting air leaks, which are common after thoracic surgery [2]. The last patient suffered a conservatively managed splenic haematoma. We now encourage more careful suturing to avoid abdominal organ injury.

Three patients experienced no symptomatic improvement, which is consistent with the literature suggesting that DP may not benefit all [14, 15]. Predictors for success remain unclear, but obesity may play a role due to elevated intra-abdominal pressure, making flattening of the diaphragm more difficult. We now limit DP to patients with a BMI < 30 kg/m². Following Deng et al., we recommend at least six months of observation before surgery to allow for possible spontaneous phrenic nerve recovery [15]. However, in our cohort, most were followed for up to one year, and we have never observed spontaneous recovery.

Our study has obvious limitations: First, the retrospective design and reliance on unstructured patient reports introduce the risk of recall and observer bias. Furthermore, the sample size was small, and symptom data were collected from clinical notes without predefined questionnaires. Therefore, subjective outcomes should be interpreted with caution. Symptom data were missing for three patients who did not respond to follow-up contact, despite having completed lung function testing. Second, all procedures were performed by a single surgeon, which enhances consistency but limits generalisability. Lastly, the absence of a control group limits causal explanation of surgical efficacy.

Nevertheless, the prospectively collected pulmonary function tests showed marked improvement, and most patients reported symptomatic improvement. The follow-up duration was relatively short, so long-term outcomes remain uncertain. However, previous studies indicate that benefits persist [7, 11].

Conclusions

Modified VATS DP appears effective for selected patients with symptomatic unilateral diaphragm paralysis. All patients improved in pulmonary function, and most patients reported symptom relief.
